Withdrawal Sleeves Series AH3

Withdrawal Sleeves Series AH3
Withdrawal Sleeves Series AH3
Send Inquiry
Product Code : 06
Product Description

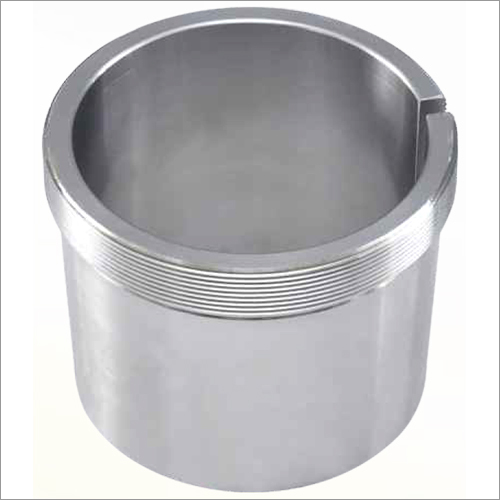

Withdrawal Sleeves Series AH3

Withdrawal sleeves no.

d1

L mm

L1 mm

b mm

Thread D1 mm

Appropriate withdrawal nut no

Weight kg

AH308

35

29

32

6

M 45x1.5

KM 09

0.090

AH309

40

31

34

6

M 50x1.5

KM 10

0.109

AH310

45

35

38

7

M 55x2

KM 11

0.137

AH311

50

37

40

7

M 60x2

KM 12

0.161

AH312

55

40

43

8

M 65x1

KM 13

0.189

AH313

60

42

45

8

M 75x2

KM 15

0.253

AH314

65

43

47

8

M 80x2

KM 16

0.280

AH315

70

45

49

8

M 85x2

KM 17

0.313

AH316

75

48

52

8

M 90x2

KM 18

0.365

AHX317

80

52

56

9

M 95x2

KM 19

0.429

AHX318

85

53

57

9

M 100x2

KM 20

0.461

AHX319

90

57

61

10

M 105x2

KM 21

0.532

AHX320

95

59

62

10

M 110x2

KM 22

0.582

AHX322

105

63

67

12

M 120x2

KM 24

0.663
