Withdrawal Sleeves Series AH23

Withdrawal Sleeves Series AH23
Withdrawal Sleeves Series AH23
Send Inquiry
Product Code : 07
Product Description

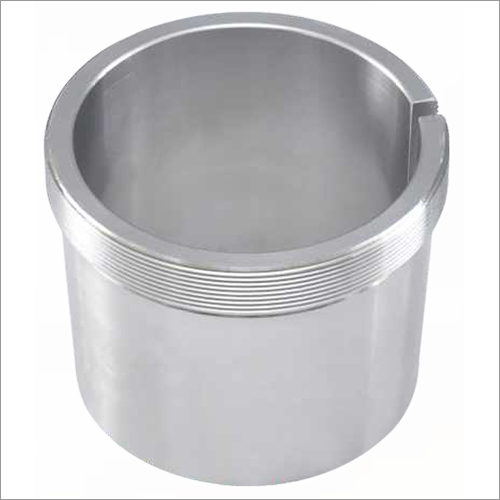

Withdrawal Sleeves Series AH23

Withdrawal sleeves no.

d1

L mm

L1 mm

b mm

Thread D1 mm

Appropriate withdrawal nut no

Weight kg

AH2308

35

40

43

7

M 45x1.5

KM 09

0.128

AH2309

40

44

47

7

M 50x1.5

KM 10

0.164

AHX2311

45

50

53

9

M 55x2

KM 11

0.209

AHX2311

50

54

57

10

M 60x2

KM 12

0.253

AHX2312

55

58

61

11

M 65x2

KM 13

0.297

AH2312

60

61

64

12

M 75x2

KM 15

0.395

AHX2314

65

64

68

12

M 80x2

KM 16

0.466

AHX2315

70

68

72

12

M 85x2

KM 17

0.534

AHX2316

75

71

75

12

M 90x2

KM 18

0.597

AHX2317

80

74

78

13

M 95x2

KM 19

0.670

AHX2318

85

79

83

14

M 100x2

KM 20

0.779

AHX2319

90

85

89

16

M 105x2

KM 21

0.886

AHX2320

95

90

94

16

M 110x2

KM 22

0.998

AHX2322

105

98

102

16

M 125x2

KM 25

1.350

AHX2324

115

105

109

17

M 135x2

KM 27

1.600

AHX2326

125

115

119

19

M 145x2

KM 29

1.970

AHX2328

135

125

130

20

M 155x2

KM 31

2.230

AHX2330

145

135

140

24

M 165x2

KM 33

2.820

AH2332

150

140

146

24

M 180x2

KM 36

4.720

AH2334

160

146

152

24

M 190x2

KM 38

5.250

AH2336

170

154

160

26

M 200x2

KM 40

5.830

AH2338

180

160

167

26

M 210x2

KM 42

6.630

AH2340

190

170

177

30

M 220x2

KM 44

7.540

AH2344

200

181

189

30

M 240x2

KM 48

13.500

AH2348

220

189

197

30

M 260x2

KM 52

15.500

AH2352

240

205

213

30

M 290x2

KM 58

19.600

AH2356

260

212

220

30

M 310x2

KM 62

21.600
