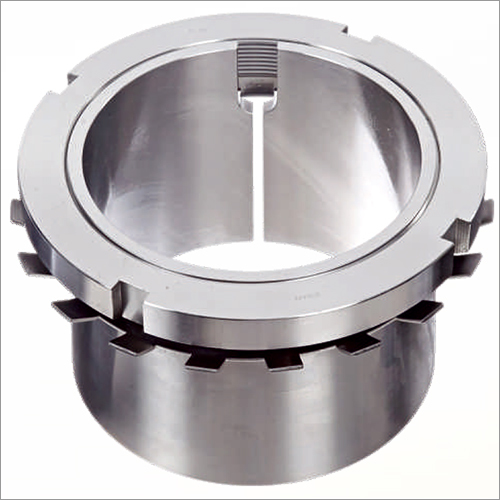

Adapter Sleeves Series H31

Adapter Sleeves Series H31
Adapter Sleeves Series H31
Send Inquiry
Product Code : 04
Product Description

Adapter Sleeves Series H31

Adapter sleeves no.

d1

L mm

D3 mm

C mm

C 1 mm

Lock nuts

Lock washer

Weight kg

H mm

HE in

H3024

110

41/4

72

145

22


KML24

MBL24

1.930

H3026

115

41/2

80

155

23


KML26

MBL26

2.850

H3028

125

5

82

165

24


KML28

MBL28

3.160

H3130

135

51/4

84

180

26


KML30

MBL30

3.890

H3132

140

51/2

93

190

28


KML32

MBL32

5.210

H3134

150

6

101

200

29


KML34

MBL34

5.900

H3136

160

61/2

109

210

30


KML36

MBL36

6.830

H3138

170

61/4

112

220

31


KML38

MBL38

7.450

H3140

180

7

120

240

32


KML40

MBL40

9.190

H3144

200


126

260

32

41

KML44

MBL44

10.300

H3148

220


133

290

34

46

KML48

MBL48

13.200

H3152

240

91/2

145

310

34

46

KML52

MBL52

15.300

H3156

260


152

330

38

50

KML56

MBL56

17.700

H3160

280


168

360

42

54

KML60

MBL60

22.800

H3164

300


171

380

4

55

KML64

MBL64

24.600

H3168

320


187

400

45

58

KML68

MBL68

28.700

H3172

340


188

420

45

58

KML72

MBL72

30.500

H3176

360


193

450

48

62

KML76

MBL76

35.800

H3180

380


210

470

52

66

KML82

MBL80

41.300

H3184

400


212

490

52

66

KML84

MBL84

43.700

H3188

410


228

570

60

77

KML88

MBL88

65.200

H3192

430


234

540

60

77

KML92

MBL92

69.500

H3196

450


237

560

60

77

KML96

MBL96

73.300

H31/500

470


247

580

68

85

KML100

MBL100

81.800
