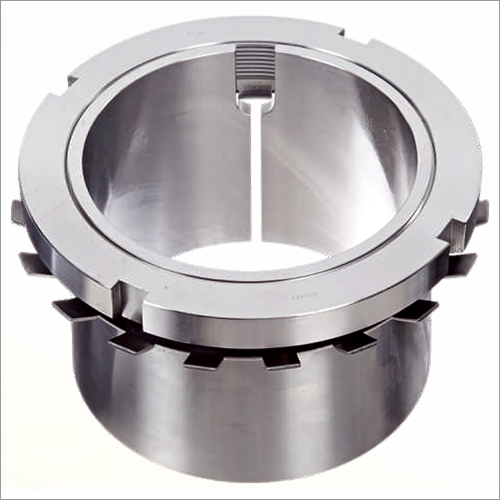

Adapter Sleeves Series H30

Adapter Sleeves Series H30
Adapter Sleeves Series H30
Send Inquiry
Product Code : 05
Product Description

Adapter Sleeves Series H30

Adapter sleeves no.

d1

L mm

D3 mm

C mm

Lock nuts

Lock washer

Weight kg

H mm

HE in

H304

17

-

28

32

7

KM 04

MB 04

0.045

H305

20

¾

29

38

8

KM 05

MB 05

0.075

H306

25

31

45

8

KM 06

MB 06

0.109

H307

30

35

52

9

KM 07

MB 07

0.142

H308

35

36

58

10

KM 08

MB 08

0.189

H309

40

39

65

11

KM 09

MB 09

0.248

H310

45

42

70

12

KM 10

MB 10

0.303

H311

50

2

45

75

12

KM 11

MB 11

0.450

H312

55

2¼ (2”)

47

80

13

KM 12

MB 12

0.394

H313

60

50

85

14

KM 13

MB 13

0.458

H314

60

23/8

52

92

14

KM 14

MB 14

0.723

H315

65

55

98

15

KM 15

MB 15

0.831

H316

70

59

105

17

KM 16

MB 16

1.030

H317

75

3

63

110

18

KM 17

MB 17

1.180

H318

80

65

120

18

KM 18

MB 18

1.370

H319

85

68

125

19

KM 19

MB 19

1.560

H320

90

71

130

20

KM 20

MB 20

1.690

H321

95


74

140

20

KM 21

MB 21

1.950

H322

100

4

77

145

21

KM 22

MB 22

2.180
