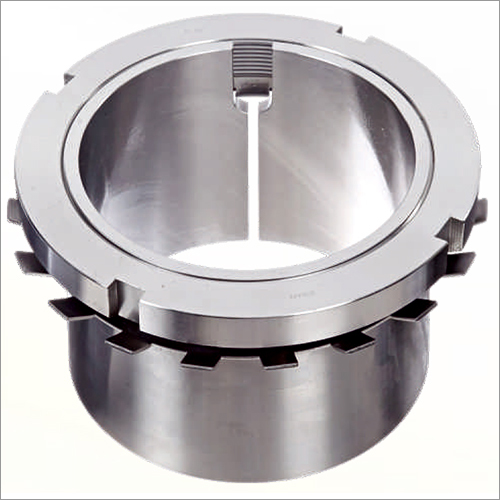

Adapter Sleeves Series H23

Adapter Sleeves Series H23
Adapter Sleeves Series H23
Send Inquiry
Product Code : 03
Product Description

Adapter Sleeves Series H23

Specification

Adapter sleeves no.

d1

L mm

D3 mm

C mm

Lock nuts

Lock washer

Weight kg

H mm

HE in

H2304

17

-

31

32

7

KM 04

MB 04

0.049

H2305

20

¾

35

38

8

KM 05

MB 05

0.087

H2306

25

38

45

8

KM 06

MB 06

0.126

H2307

30

43

52

9

KM 07

MB 07

0.165

H2308

35

46

58

10

KM 08

MB 08

0.224

H2309

40

50

65

11

KM 09

MB 09

0.280

H2310

45

55

70

12

KM 10

MB 10

0.362

H2311

50

2

53

75

12

KM 11

MB 11

0.420

H2312

55

2¼ (2”)

62

80

13

KM 12

MB 12

0.481

H2313

60

65

85

14

KM 13

MB 13

0.557

H2314

60

23/8

68

92

14

KM 14

MB 14

0.897

H2315

65

73

98

15

KM 15

MB 15

1.050

H2316

70

78

105

17

KM 16

MB 16

1.280

H2317

75

3

82

110

18

KM 17

MB 17

1.450

H2318

80

86

120

18

KM 18

MB 18

1.690

H2319

85

90

125

19

KM 19

MB 19

1.92

H2320

90

97

130

20

KM 20

MB 20

2.150

H2321

95


101

140

20

KM 21

MB 21

2.460

H2322

100

4

105

145

21

KM 22

MB 22

2.740

H2324

110

112

155

22

KM 24

MB 24

3.190

H2326

115

121

165

23

KM 26

MB 26

4.600
