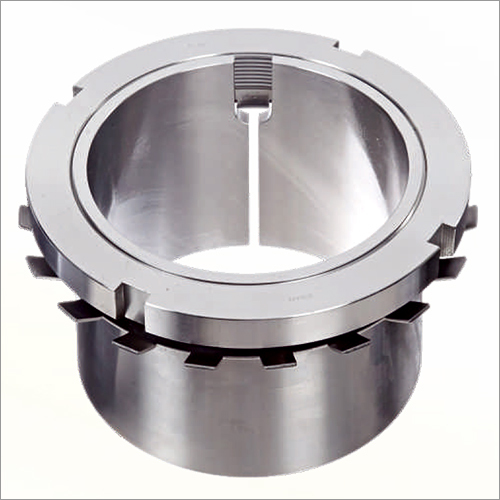

Adapter Sleeves Series H2

Adapter Sleeves Series H2
Adapter Sleeves Series H2
Send Inquiry
Product Code : 01
Product Description

Adapter Sleeves Series H2

Adapter sleeves no.

d1

L mm

D3 mm

C mm

Lock nuts

Lock washer

Weight kg

H mm

HE in

H204

17

-

24

32

7

KM 04

MB 04

0.041

H205

20

¾

26

38

8

KM 05

MB 05

0.070

H206

25

27

45

8

KM 06

MB 06

0.099

H207

30

29

52

9

KM 07

MB 07

0.125

H208

35

31

58

10

KM 08

MB 08

0.174

H209

40

33

65

11

KM 09

MB 09

0.227

H210

45

35

70

12

KM 10

MB 10

0.740

H211

50

2

37

75

12

KM 11

MB 11

0.308

H212

55

2¼ (2”)

38

80

13

KM 12

MB 12

0.346

H213

60

40

85

14

KM 13

MB 13

0.401

H214

60

23/8

41

92

14

KM 14

MB 14

0.593

H215

65

43

98

15

KM 15

MB 15

0.707

H216

70

46

105

17

KM 16

MB 16

0.882

H217

75

3

50

110

18

KM 17

MB 17

1.020

H218

80

52

120

18

KM 18

MB 18

1.190

H219

85

55

125

19

KM 19

MB 19

1.370

H220

90

58

130

20

KM 20

MB 20

1.490

H221

95


60

140

20

KM 21

MB 21

1.720

H222

100

4

63

145

21

KM 22

MB 22

1.930
